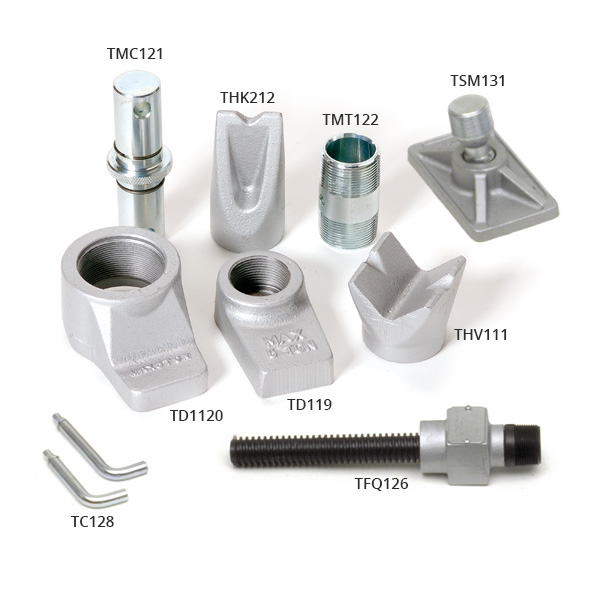

Cylinders from CF and CFC series are probably REHOBOT’s most flexible cylinders. With both the wide range of cylinders regarding cylinders stroke lengths and performance and the possibility to equip those cylinders with accessories, CF and CFC cylinders have all the prerequisites to become universal tools.
With the aid of adapters, accessories can be mounted on top and at the bottom of CFC cylinders. In order to connect accessories to the base plate of CFC cylinders, adapter TG50 (5 ton CFC cylinders), TFG100 (10 ton CFC cylinders) or TFG250 (25 ton CFC cylinders) is required.
Because CF cylinders don’t have drilled holes at the bottom, accessories can only be mounted on the top of CF cylinders.
Metric measurements
| Name | Item code | For cylinder type | Type | Connection |
| TC428 | 14675 | CF/CFC 49kN | Locking pin | – |
| TD419 | 14563 | CF/CFC 49kN | Clamp head for piston (max 20kN) | Tap ø19mm |
| TD420 | 14562 | CF/CFC 49 kN | Clamp head for cylinder (max 20kN) | int. UN 1 1/2-16 |
| TMC421 | 20234 | CF/CFC 49kN | Coupling tap | Tap ø19mm |
| TS430 | 14571 | CF/CFC 49kN | Support plate | Hole ø19mm |
| TC128 | 15160 | CF/CFC 111kN | Locking pin | – |
| TD119 | 15182 | CF/CFC 111kN | Clamp head for pistons (max 50kN) | int. NPT 1 1/4-11 1/2 |
| TD120 | 15171 | CF/CFC 111kN | Clamp head for cylinder (max 50kN) | int. UN 2 1/4-14 |
| TMC121 | 15198 | CF/CFC 111kN | Coupling tap | Tap ø32 mm |
| TMT124 | 15177 | CF/CFC 111kN | Coupling niple | int. 2x NPT 1 1/4-11 1/2 |
| TK107 | 28874 | CF/CFC 111kN | Chain with hook (2m) | |
| TOK109 | 15167 | CF/CFC 111kN | Chain yoke | int. UN 2 1/4-14 |
| TS130 | 15172 | CF/CFC 111kN | Support plate | int. NPT 1 1/4-11 1/2 |
| TSM131 | 15151 | CF/CFC 111kN | Support with articulated tap | ext. NPT 1 1/4-11 1/2 |
Imperial measurements
| Name | Item code | For cylinder type | Type | Connection |
| TC428 | 14675 | CF/CFC 49kN | Locking pin | – |
| TD419 | 14563 | CF/CFC 49kN | Clamp head for piston (max 20kN) | Tap ø0.75in |
| TD420 | 14562 | CF/CFC 49 kN | Clamp head for cylinder (max 20kN) | int. UN 1 1/2-16 |
| TMC421 | 20234 | CF/CFC 49kN | Coupling tap | Tap ø0.75in |
| TS430 | 14571 | CF/CFC 49kN | Support plate | Hole ø0.75in |
| TC128 | 15160 | CF/CFC 111kN | Locking pin | – |
| TD119 | 15182 | CF/CFC 111kN | Clamp head for pistons (max 50kN) | int. NPT 1 1/4-11 1/2 |
| TD120 | 15171 | CF/CFC 111kN | Clamp head for cylinder (max 50kN) | int. UN 2 1/4-14 |
| TMC121 | 15198 | CF/CFC 111kN | Coupling tap | Tap ø1.26in |
| TMT124 | 15177 | CF/CFC 111kN | Coupling niple | int. 2x NPT 1 1/4-11 1/2 |
| TK107 | 28874 | CF/CFC 111kN | Chain with hook (78.74 in) | |
| TOK109 | 15167 | CF/CFC 111kN | Chain yoke | int. UN 2 1/4-14 |
| TS130 | 15172 | CF/CFC 111kN | Support plate | int. NPT 1 1/4-11 1/2 |
| TSM131 | 15151 | CF/CFC 111kN | Support with articulated tap | ext. NPT 1 1/4-11 1/2 |
