Fork threading tool – 1696

material: special tool steel
ergonomic heavy duty double component handle
How to use the tool:
The fork threading tool is designed for cutting new threads and for chasing existing threads on steerer tubes that are not chromed. Made from quality steel and designated for long life use. Use the tool on the steerer tube under 90° angle. When cutting threads, use cutting grease. The ergonomic design of the handle ensures optimal force transmission and effective work.

Technical data

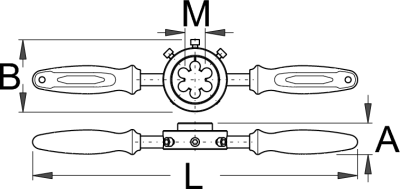

M L A B
616074 1″ x 24 tpi 370 31 84 1100 1F 1
619633 1.1/8″ x 26 tpi 370 31 84 1130 1F 1



Download as PDF



Packaging

Retail tool packagingTransport package
M A B C A1 B1 C1
616074 1″ x 24 tpi 115 382 48 1170 1 115 382 48 1170
619633 1.1/8″ x 26 tpi 115 390 47 1200 1
